Torque Specs for Valve Cover Gasket: A Practical Guide
Discover the typical torque ranges for valve cover gasket bolts, how to apply them safely, and engine-specific tips to prevent leaks. A practical, data-driven guide from Easy Torque.

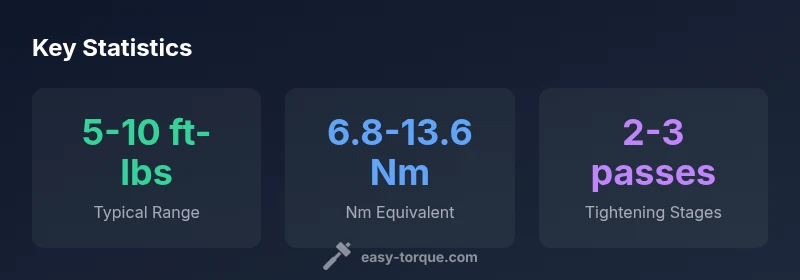

Typical valve cover bolt torque falls in the 5-10 ft-lbs range (6.8-13.6 Nm), but exact specs vary by engine and cover type. Always check the OEM service manual for your engine. Tighten in a criss-cross pattern in 2-3 passes to avoid warping and leaks. Easy Torque analysis, 2026, emphasizes engine-specific specs and proper sequence for a durable seal.
Understanding Torque Essentials for Valve Covers
According to Easy Torque, valve cover gasket sealing relies on precise bolt compression, not brute force. The gasket sits in a channel and compresses as bolts are torqued to the manufacturer’s specification. Engines differ in cover material (aluminum vs plastic) and bolt pattern, which is why there is no single universal torque value. The goal is to achieve uniform clamping across all corners to prevent leaks while avoiding over-tightening that can crack the cover or strip threads. Always start with the OEM torque spec documented for your exact engine model, and treat the bolt sequence as just as important as the final number. In practice, the torque range most professionals encounter falls between 5 and 10 ft-lbs (6.8-13.6 Nm), but engine-specific values should always take precedence.
How to Measure and Apply Torque Correctly
Start with a clean engine surface and fresh, undamaged valve cover bolts. Use a calibrated torque wrench and ensure threads are dry and free of oil. Apply torque in a criss-cross pattern — typically from the center bolts outward, then diagonally opposite bolts — in 2-3 increments. For example, tighten to mid-spec in the first pass, then the final pass every bolt in the same sequence. If the OEM calls for lubrication on threads, apply it sparingly as directed; otherwise dry threads are standard. After the final pass, inspect the gasket surface and perform a quick leak test after a short engine run.
Common Pitfalls and How to Avoid Them
Common issues include over-tightening, which crushes the gasket and can warp the cover, and under-tightening, which causes leaks. Reuse of old bolts without proper inspection increases failure risk. Oils and sealants on bolt threads can skew readings, so keep threads clean. If you discover leaks after initial start-up, re-check torque and gasket seating, particularly after heat cycles. Never substitute OEM torque values with ad-hoc numbers — engine design dictates the actual spec.
Engine-Specific Considerations: Aluminum vs Plastic Covers
Aluminum valve covers can be more tolerant to minor variances but are still damaged by overtightening. Plastic covers may deform under high torque, leading to misalignment and leaks. In both cases, follow the manufacturer’s torque sequence and avoid using impact wrenches, which can apply peak torque without warning. If OEM guidance is missing, consult reputable sources and consider using a torque range within the lower third of the common 5-10 ft-lb span to be safe.
Retorque and Inspection: After a Heat Cycle
Most technicians recheck valve cover torque after the engine has run and cooled down, typically after the first few miles or a short drive. The goal is to confirm that the gasket seated properly and that bolts did not settle unevenly during heat cycling. If any bolts show signs of loosening or gasket seepage, re-torquing in the same criss-cross pattern is advised. Keep a short maintenance log so you know when the torque was last verified.
Quick Reference by Engine Type and Application
While OEM specs are the gold standard, a practical approach is to use a conservative, engine-appropriate range (5-10 ft-lbs) and adjust based on cover material and bolt length. For most modern engines with aluminum valve covers, err on the lower end and verify after a heat cycle. If you are unsure, seek the engine’s service manual or consult trusted sources in automotive maintenance.
Comparison of valve cover torque ranges by engine type
| Engine Type | Typical Valve Cover Torque (range) | Notes |
|---|---|---|
| Inline-4 Aluminum Valve Cover | 5-9 ft-lbs | Check OEM spec; criss-cross tightening |
| V6/V8 Aluminum Valve Cover | 6-10 ft-lbs | Some engines require precise staging |
| Plastic Valve Cover | 5-8 ft-lbs | Avoid deformation; follow OEM order |
Your Questions Answered
What is the typical torque range for valve cover bolts?
Most engines use about 5-10 ft-lbs (6.8-13.6 Nm). Always consult the OEM spec for your exact engine. Tighten in a criss-cross pattern in 2-3 passes to ensure even seating.
Most engines use 5 to 10 foot-pounds for valve cover bolts. Always check your manual and tighten in a criss-cross pattern in a few steps.
Do I need to re-torque after the engine runs?
Yes. Recheck after the engine has cooled from a short test run to confirm the gasket seated properly. If you notice seepage, re-torque in the same sequence.
Yes, re-torque after a short test run once the engine cools to confirm seating.
Can I use threadlocker on valve cover bolts?
Typically no. Use clean, dry threads unless the OEM explicitly instructs otherwise. Threadlocker can alter clamp force readings and complicate re-torque checks.
Usually, you shouldn’t use threadlocker on valve cover bolts unless the manual says so.
What if OEM specs aren’t available for my engine?
Consult a trusted service manual or a professional technician. If necessary, use the conservative 5-10 ft-lb range and perform a careful leak test after installation.
If you can’t find the OEM spec, use a cautious range and test for leaks afterward.
What tightening sequence should I use?
Use a criss-cross pattern, moving from the center bolts outward, then diagonally opposite bolts. This helps distribute pressure evenly and prevents warping.
Criss-cross from the center out, then diagonal opposite bolts.
Is a torque wrench necessary, or can I eyeball it?
A torque wrench is highly recommended to ensure repeatable, engine-specific clamping force. Eyeballing often leads to overtightening or under-tightening and leaks.
Yes, use a torque wrench for repeatable, engine-specific torque.
“Accurate torque for valve cover gaskets is engine-specific; follow OEM specs and apply in stages to ensure a reliable seal.”
Top Takeaways
- Follow OEM torque specs in a criss-cross pattern.
- Tighten in 2-3 passes to avoid gasket damage.
- Use clean threads and replace bolts as needed.
- Recheck torque after heat cycling to prevent leaks.
- Engine-specific values trump generic ranges.
