How to Change a Torque Converter: A DIY Guide
Learn how to change a torque converter with a clear, step-by-step approach. Safety, planning, tools, and troubleshooting tips for DIY mechanics and car enthusiasts.
This guide shows how to change a torque converter and restore transmission performance. You’ll need a clear workspace, basic hand tools, a transmission jack or help, and the vehicle service manual for torque specs. Expect to drain fluid, disconnect lines, remove the transmission, install the new converter, reseal, refill, and test the system.
What a torque converter does and when to change it
A torque converter is a fluid-coupling device between the engine and the transmission. It multiplies torque at low speeds, smooths power delivery, and allows you to coast in gear without stalling. When it fails, you may notice shuddering, slipping, hard shifts, or a loss of power transfer. If diagnostic tests point to the converter rather than the transmission internals, it’s time to consider a change. In this guide on how to change torque converter, you’ll follow a safe, methodical process that minimizes risk and protects your drivetrain. According to Easy Torque, planning the replacement around the vehicle’s service manual and using fresh converter seals improves reliability and longevity.
Typical symptoms vary by model, but common signs include overheating, unusual noises, and decreased transmission responsiveness. If you observe any of these symptoms, document driving conditions and color of exhaust smoke (if any) to help confirm the fault during diagnosis. This knowledge helps you decide whether to proceed with a converter change or pursue other transmission repairs.
Key takeaway: a faulty torque converter can mimic other transmission issues, so a precise diagnosis is essential before you commit to replacement.
Safety first: prerequisites and risks
Performing a torque converter replacement is a high-skill DIY task that carries safety risks if rushed or done without proper gear. Always work on a cold engine, and secure the vehicle on a level surface with wheel chocks. Use a heavy-duty jack stand and a transmission jack or helper to support the weight during removal. Disconnect the battery to prevent any accidental shorting of circuits. Read the vehicle’s service manual for specific cautions on fluid type and torque specs. Easy Torque emphasizes wearing eye protection and gloves to guard against hot metal edges and sharp components.
The process involves draining hot transmission fluid, handling heavy parts, and potentially dealing with pressurized lines. If you’re unsure at any point, stop, reassess, and consult the manual or a pro. Do not rush the mount/bolt procedures, as improper alignment can damage the engine crankshaft and transmission.
Best practice: create a clean visual reference plan by labeling fasteners and documenting order with photos.
Planning and prep: filming, manuals, and workspace
Good planning reduces surprises. Before you touch a wrench, gather all required tools and materials, access the service manual for torque values, and ensure you have a clean workspace with ample lighting. Remove the vehicle’s floor mats, drain pans, and any heat shields that block access. If your vehicle uses an electronically controlled transmission, have a scan tool ready to monitor fault codes before and after the job.
A comprehensive plan should include a step-by-step sequence, safety checks, and a test plan to verify functionality after installation. Schedule extra time for trimming and adjustments—refitting the transmission makes the operation safer and reduces rework. Consider a helper or a transmission jack to support the assembly while you maneuver the parts.
Pro tip: take high-resolution photos of the bell housing and converter alignment before disassembly so you can replicate precise alignment during reassembly.
Draining fluid and gaining access
Drain the transmission fluid into a suitable container following the manufacturer’s recommended fluid type. Once drained, remove the transmission pan if necessary to access mounting points and the torque converter bolts. Relieve any residual pressure in the torque converter and disconnect cooling lines if your model has external cooling. Label cables and sensors to ensure proper reinstallation.
Gaining access to the torque converter bolts often requires removing the transmission from the engine bell housing. This step is the gateway to removing the old converter and inspecting the flexplate or flywheel surface for wear. Have a replacement seal kit ready, because you’ll reseal the system when installing the new converter.
Important: never pry on the converter or use excessive force; misalignment can damage the pump and create leaks.
Removing the old torque converter
With access established, rotate the engine slightly to align the torque converter bolts and unwind them in a star pattern to avoid warping. Detach the converter from the transmission’s input shaft and gently separate it from the bell housing. Inspect the torque converter mounting surface for scratches or debris and clean as needed. Keep track of all hardware and note which bolts belong to which components, as mixing fasteners can lead to improper torque.
If the converter is stuck, avoid hammering it free; instead, check for stuck dowel pins or misaligned splines. A light tapping with a dead-blow hammer near the housing can free the unit, but avoid harsh blows that could crack the bell housing.
Pro tip: use a magnetic tray to hold small bolts and a seal puller to remove gaskets without damaging mating surfaces.
Installing the new torque converter
Install the new torque converter by aligning it with the transmission’s input shaft and rotating until you feel the converter seats into the pump. Confirm converter spline engagement by rotating the crank a few degrees and watching the converter turn smoothly. Reinstall any dowel pins if required by your model, then reattach the converter to the bell housing and torque the bolts to the manufacturer’s specs in a star pattern.
Check for free movement of the converter before installing the transmission back into the engine. Ensure the flexplate has clean mating surfaces and no gasket material that could interfere with proper seating.
Note: never reuse old seals; always install a fresh front pump seal and any other recommended seals from the kit.
Reassembly, fluids, and priming the system
With the converter seated, reassemble the transmission to the engine, ensuring the alignment pins seat properly. Reconnect the transmission lines and sensors, then lower the unit and secure all fasteners. Refill the transmission with the manufacturer-recommended fluid through the dipstick tube or fill port, and prime the converter by cycling the engine briefly with the transmission in park/neutral. Run the engine at a low idle to check for leaks around the seal and torque converter bolts.
Check the transmission fluid level again when the engine is warm, and adjust as needed to the specified range. Replace the transmission pan gasket if you removed it, and reinstall the pan.
Tip: refer to the service manual for flow direction through the cooler lines to prevent air locks and ensure proper fluid circulation.
Testing, inspection, and road test
After completion, perform a thorough test: start the engine, shift through all gears, and listen for unusual noises or vibrations. Take a short road test in a safe area to observe throttle response, shifting behavior, and torque delivery. Watch for fluid leaks around the bell housing and pan and confirm temps are within the expected range. If the vehicle exhibits slipping or harsh engagement, recheck torque specs, line connections, and the converter’s seating.
Record data from the test drive and compare it to baseline diagnostics. If any fault codes appear, clear them after repair and recheck. Once the drive test is successful, do a second, longer drive to validate reliability.
Caution: do not drive long distances if you notice signs of a mis-seated converter, cross-threaded bolts, or leaking coolant/fluids.
Common issues and troubleshooting
Even experienced DIYers encounter issues with torque converter replacements. Common problems include misaligned bolts causing vibration, an unseated converter leading to pump cavitation, and leaking seals. If you experience hard shifts, shudder, or an illuminated check engine light after the replacement, recheck the steps: ensure torque specs are correct, verify the converter seating, and inspect the transmission fluid level.
When troubleshooting, consult the vehicle service manual for torque patterns and access routes. If you are unsure about a symptom—such as unusual grinding noises or failure to engage gears—seek professional advice before proceeding.
Bottom line: patience and attention to alignment are the most reliable tools for a successful torque converter change.
Tools & Materials
- Bead-laden transmission fluid pan drip tray(Capture excess fluid during draining to reduce mess)
- Shop rags and a catch bucket(Keep surfaces clean to avoid debris in the transmission)
- Mechanic's gloves and safety glasses(Protect hands and eyes from fluid and metal shards)
- Fluid: the correct transmission fluid type for your vehicle(Check the manual for viscosity and spec)
- New torque converter and seal kit(Use manufacturer-approved part and seals)
- Torque wrench set (ft-lb and in-lb ranges)(Ensure bolts are torqued to spec)
- Transmission jack or engine hoist and flexible pry bars(Support and maneuver heavy components safely)
- Shop crane or portable hoist and jack stands(Stabilize vehicle during removal and installation)
- Dial indicator or torque stick for bolt torque patterns(Optional for precise pattern)
- Ratchets, extensions, and star-pattern sockets(Access bolts in tight spaces)
- sealant or gasket remover(Prepare clean mating surfaces)
- Magnetic parts tray(Keep fasteners organized)
- Drain pan(Collect used transmission fluid)

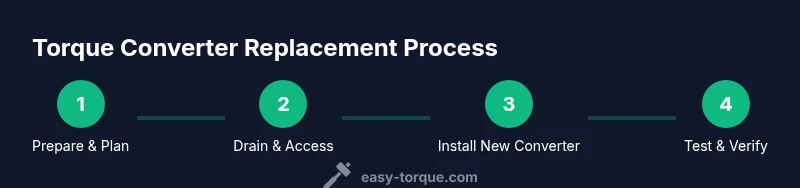

Steps
Estimated time: 4-8 hours
- 1
Prepare workspace and safety setup
Clear space, set up lighting, and position the vehicle on a level surface with wheel chocks. Disconnect the battery and ensure you have a plan for fluid disposal. Gather all tools and parts in a central area to minimize trips. This step sets the stage for a controlled, safe replacement.
Tip: Label fasteners and photograph the engine/transmission interface before disassembly. - 2
Lift and support the vehicle securely
Raise the vehicle with a jack and place it on appropriate stands. Use a transmission jack or heavy-duty support to hold the transmission weight while you work. Never rely on a floor jack alone for support during removal.
Tip: Double-check stand stability every 15 minutes during the job. - 3
Drain fluid and access torque converter bolts
Drain transmission fluid into a drain pan. Remove any shields or pans that block access to the bell housing and torque converter bolts. Label lines and electrical connectors for accurate reattachment.
Tip: Recheck the level after draining; you’ll top it off again after reassembly. - 4
Disconnect lines and electrical connections
Carefully unplug cooler lines, sensors, and wiring harnesses connected to the transmission. Use a tray to catch any residual fluid and sleeve protectors to prevent damage to connectors.
Tip: Take photos of line routing to prevent misconnection during reassembly. - 5
Unbolt and separate the transmission from the engine
Unbolt the transmission from the engine, keeping track of bolt lengths and positions. Support the transmission with the jack as you work the interface apart, then slowly lower enough to access the torque converter bolts.
Tip: Work slowly to avoid damaging the flexplate or crankshaft thrust surfaces. - 6
Remove the old torque converter
Loosen and remove the torque converter bolts, then detach the converter from the transmission input shaft. Inspect the converter and the mounting surface for wear or debris and clean as needed.
Tip: Do not pry; if it sticks, recheck alignment and pins before force is applied. - 7
Install the new torque converter
Slide the new converter onto the input shaft with a gentle twist to engage splines. Ensure it seats fully and rotate the crank to verify smooth operation. Reinstall bolts in a star pattern and torque to spec.
Tip: Confirm the converter is fully seated before reattaching the transmission to the engine. - 8
Reinstall the transmission and reconnect components
Lift the transmission back into position and secure it to the engine. Reconnect all lines, sensors, and wiring harnesses. Verify that all fasteners are torqued to spec and that nothing interferes with moving parts.
Tip: Use a helper or transmission jack to avoid dropping components. - 9
Refill fluid and prime the system
Refill with the manufacturer-recommended fluid. Prime the torque converter by cycling the engine briefly with the transmission in park/neutral, then check for leaks or abnormal noises.
Tip: Warm the engine before final fluid level check to ensure proper reading. - 10
Perform final checks and test drive
Start the engine, cycle through gears, and perform a cautious road test. Monitor for leaks, overheating, noises, or improper shifts. If issues arise, recheck torque specs and seating.
Tip: Document any concerns and recheck after a short drive before concluding the job. - 11
Finalize and clean up
Replace shields, dispose of old fluid properly per local regulations, and clean the work area. File a quick maintenance note for future reference. Confirm the vehicle is road-ready before returning to daily use.
Tip: Store tools and spare parts in an organized manner for the next project. - 12
Review results and plan future maintenance
Assess performance after the test drive and note any follow-up items. Schedule regular fluid changes and inspections according to the vehicle’s maintenance plan.
Tip: Keep a log of torque converter replacements for future reference.
Your Questions Answered
Do I need to remove the transmission to change the torque converter?
In most configurations, you must access the torque converter by removing the transmission or separating it from the engine to access the bolts and seating surfaces. Always consult your vehicle’s service manual for model-specific guidance.
Usually, yes; you’ll access the converter by separating the transmission from the engine and then remove the converter bolts.
Can I reuse the old torque converter with a new one?
No. Torque converters are designed for single use and should be replaced with a new unit to ensure proper engagement and lubrication. Reusing can lead to failure and leaks.
It's best to replace with a new torque converter to avoid future issues.
What tools are essential for this job?
You’ll need a transmission jack or strong support, a full set of hand tools, torque wrench, new converter, seals, and transmission fluid. A service manual is highly recommended for model-specific steps.
Have the right tools ready before you start; a manual helps with exact torque specs.
How long does it take to change a torque converter?
The replacement is a multi-hour job that can take several hours depending on the vehicle and access. Plan for an afternoon or a full day to be safe.
Most replacements take several hours; set aside a full day for safety and accuracy.
Is it safe to drive with a faulty torque converter?
No. A failing torque converter can cause transmission damage or loss of drive capability. Seek repair promptly and avoid extended driving.
Don’t drive long distances if you suspect converter failure; get it fixed first.
Watch Video
Top Takeaways
- Plan thoroughly before starting
- Use proper support to manage weight safely
- Ensure torque specs and seating are correct
- Refill and prime the system carefully
- Test drive to confirm successful replacement
