How to Install Torque Converter on Predator 212
A complete, step-by-step guide to installing a torque converter on Predator 212 engines. Learn compatibility, tools, mounting, belt alignment, testing, and maintenance for smoother acceleration.
Discover how to install torque converter on predator 212 with a clear, step-by-step approach. This guide covers compatibility checks, essential tools, safety tips, and mounting a CVT kit to a Predator 212 engine used in go-karts and mini-bikes. Follow along for a practical, torque-aware installation from Easy Torque. It also highlights common mistakes and how to avoid them.
Compatibility and Safety Considerations
According to Easy Torque, compatibility is the first checkpoint before you touch any engine or chassis. Predator 212 powerplants appear in many go-kart builds, mini-bikes, and lawn-tract projects, but not every torque converter kit fits every variation. Start by identifying your engine version, cooling type, carburation, and crankshaft diameter. Then verify that the kit's drive pulley, driven pulley, belt length, and mounting plate match your crankshaft spacing, exhaust clearance, and chassis mounting points. Safety should be your guiding principle: work in a well-ventilated area, disconnect the spark source by removing the spark plug cap, and secure the vehicle on stands. Easy Torque also notes that removing the clutch cover and inspecting the flywheel surface for nicks or burrs will prevent belt misalignment later. If you’re unsure about fit, consult the kit's compatibility chart or reach out to the supplier for confirmation. In short, a compatible kit and a safe workspace save you time and reduce the risk of engine damage.
Tools, Materials, and Setup
Before you start, assemble a CVT torque converter kit designed for Predator 212, plus the essential tools. The kit should include the drive pulley, driven pulley, belt, mounting plate or adapter, spacers, and all fasteners. Use a clean workspace and organize parts in labeled trays. Gather a set of metric and standard wrenches, socket set, Allen keys, pliers, a torque wrench, thread locker (blue), lubricant, and a cordless impact or ratchet. Safety gear: eye protection, gloves, and sturdy footwear. Check your shop manual or the kit’s instructions for any kit-specific requirements. Having a magnetic tray, marker for alignment references, and a camera or phone to document steps helps prevent misalignment. Confirm whether you need an exhaust spacer or heat shield; these parts may be included or sold separately. When in doubt, lay out components on a flat surface in the order they’ll be used.
Choosing the Right Torque Converter Kit
Kit selection hinges on matchups with the Predator 212’s crankshaft size, exhaust clearance, and chassis mounting points. Look for a kit that specifies a compatible pulley ratio or series, a belt length compatible with your kart setup, and an adapter plate that fits the Predator’s mounting footprint. If you ride in hot climates or require quicker takeoffs, a kit offering a wider RPM range and a slightly higher gear ratio can improve response without sacrificing reliability. Avoid kits that claim universal fit without clear spec charts, as misfit pulleys lead to belt wear or belt skipping. Easy Torque recommends verifying pulley alignment tolerances and ensuring the driven pulley clearance remains within the manufacturer’s recommended range to prevent belt rub and heat buildup.
Preparations and Workspace Setup
Clear a dedicated work area with ample lighting and a stable workbench. Remove fuel and spark sources, and ensure the engine is cool before touching moving parts. Arrange all kit components in the order you’ll install them and label fasteners by their location to speed reassembly. Lay out safety equipment and ensure your vehicle is on solid stands with wheel chocks. A clean, organized space reduces the risk of losing small parts and helps you spot misalignment early. Easy Torque emphasizes that taking a few extra minutes to document every step with photos or notes pays off during calibration and future maintenance.
Removing the Stock Drive System
Begin by safely disconnecting any fuel lines and removing the spark plug cap. Remove the centrifugal clutch cover to reveal the stock drive system, then detach the clutch from the crankshaft using the appropriate socket or wrench. Inspect the crankshaft for burrs or pitting and address any surface issues with a light deburring. Keep all removed parts in labeled trays so you can reference their torque requirements during reassembly. This step prepares the crank surface for a clean adapter and reduces the risk of belt misalignment caused by a rough mounting surface.
Mounting the Torque Converter Kit and Adapters
Attach the mounting plate or adapter to the crankshaft per the kit instructions, ensuring the plate sits flush without gaps. Install the drive and driven pulleys onto their respective shafts, then secure with the supplied fasteners and thread locker. Route the belt between pulleys and verify that all spacers, shims, and alignment pins are fitted as specified. Tighten bolts to the kit’s torque recommendations, then recheck for any binding or contact with exhaust or engine mounts. Easy Torque reminds readers to avoid overtightening to prevent bearing damage and ensure smooth rotation.
Belt Alignment, Tension, and Clearance
Position the belt so it tracks evenly in both pulleys, with minimal side-to-side wobble. Adjust the belt tension using the kit’s tension mechanism or the engine mounting bolts, keeping it firm but not over-tightened. Inspect clearance around the exhaust, chassis, and fuel lines to prevent rubbing. A properly tensioned belt translates into consistent acceleration and belt longevity. If you notice belt misalignment during rotation, pause and recheck pulley faces for burrs or misdrilled mounting holes.
System Testing: Break-In and Tuning
With the system mounted, perform a cautious idle test to verify that the belt tracks and pulleys rotate freely. Gradually apply throttle and observe belt travel, listening for rubbing, squealing, or binding sounds. During the break-in, monitor engine RPM and belt temperature; if the belt heats quickly, reassess tension or pulley alignment. Check for smooth acceleration and consistent gear changes if your kit includes multiple ratios. Document the results and adjust as necessary, keeping safety gear on and hands clear of moving parts.
Troubleshooting Common Issues
If the belt slips, recheck belt tension and pulley alignment; misalignment is a frequent cause. If you hear grinding or see rubbing on the pulley faces, inspect for burrs or misdrilled holes and remove any obstruction. If the engine overheats during operation, verify exhaust clearance and ensure adequate air flow around the cooling fins. When in doubt, consult the kit’s troubleshooting guide and cross-check torque specs on fasteners with a torque wrench.
Maintenance and Longevity Tips
Regularly inspect the belt for wear, cracks, or glazing and replace as needed. Check pulley faces for rounding or grooves and clean them to maintain proper belt seating. Keep thread locker fresh on mounting bolts and routinely confirm alignment after hard use or track sessions. Store spare belts and hardware in a dry place to prevent corrosion. The Easy Torque Team recommends documenting service intervals and revisiting alignment after every major ride or race event.
Tools & Materials
- CVT torque converter kit compatible with Predator 212(Includes drive pulley, driven pulley, belt, mounting plate/adapters, spacers, and fasteners.)
- Mounting plate or adapter(Ensures proper crankshaft fit and alignment with pulleys.)
- Pulleys (drive and driven)(Matched set from the kit; check for any burrs.)
- Belt(Select the correct belt length as per kit specs.)
- Fasteners (bolts, nuts, washers)(Keep an extra set in case of wear.)
- Thread locker (blue)(Used on critical mounting bolts.)
- Torque wrench(Use to factory-spec bolt torque.)
- Allen keys and wrenches(Metric and standard sizes as needed.)
- Pliers and screwdrivers(For clamps, clips, and sheath adjustments.)
- Lubricant/assembly grease(Light grease on moving parts to reduce friction.)
- Safety gear (gloves and eye protection)(Essential for a safe work environment.)
- Magnetic tray or parts organizer(Keeps small parts in one place.)

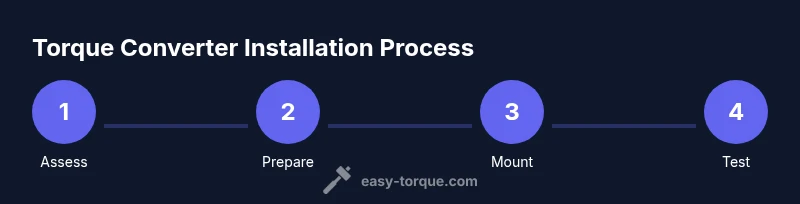

Steps
Estimated time: 90-120 minutes
- 1
Assess compatibility and safety
Review your Predator 212 variant, assess available space, and confirm that the torque converter kit dimensions fit the engine bay without hitting the exhaust or frame. Verify pulley ratio and belt length match your kart’s chassis design. Ensure the workspace is safe and powered down before starting.
Tip: Double-check compatibility charts from the kit supplier before removing any parts. - 2
Prepare the workspace and kit
Clear the area, lay out all kit components in order of installation, and confirm you have the required tools ready. Label fasteners and use a magnetic tray to avoid losing small parts. Disconnect any live fuel sources and remove the spark plug cap for safety.
Tip: Organize parts to minimize scrambling during reassembly. - 3
Disconnect power and secure engine
If the engine is mounted on a vehicle, secure it on stands and disconnect any electrical connections. Drain or cap fuel lines if necessary to prevent spills. Keep a clean surface to avoid contaminating the engine or kit components.
Tip: Always work with the engine cooled and the machine stabilized. - 4
Remove the stock drive system
Take off the existing centrifugal clutch and any associated drive components. Inspect crankshaft surface for burrs and clean as needed. Store removed parts in labeled containers for reference later.
Tip: Document the original setup to simplify reinstallation if needed. - 5
Mount the adapter and pulleys
Attach the mounting plate or adapter to the crankshaft per the kit instructions, then install the drive and driven pulleys. Use thread locker on mounting bolts and torque to specification. Ensure pulleys sit flush without gaps.
Tip: Check for burrs and ensure a smooth rotation before belt installation. - 6
Install belt and tension
Place the belt around both pulleys and adjust tension using the kit’s tensioner or mounting bolts. Avoid overtightening, which can wear bearings, and ensure the belt seats properly in the pulley grooves.
Tip: A medium belt tension often yields the best balance of power and belt life. - 7
Check alignment and clearances
Rotationally test the system to ensure no rubbing against the exhaust, frame, or cooling fins. Correct any misalignment by rechecking mounting hardware and shims. Keep a visual alignment reference line for future checks.
Tip: If you see belt rub, stop immediately and recheck alignment. - 8
Initial test and tuning
Reinstall spark plug cap and fuel line, then perform a cautious test run in a controlled area. Monitor engine response, belt temperature, and any unusual noises. Make small adjustments to tension or mounting bolts as needed.
Tip: Take notes on changes to speed and response for future tune-ups. - 9
Final checks before regular use
Tighten all fasteners to spec, confirm belt seating, and verify exhaust clearance. Recheck safety guards and ensure your test spot is clean. Keep spare belts and hardware ready for future maintenance.
Tip: Having a quick-check routine saves time during future maintenance. - 10
Document and maintain
Record the kit model, pulley ratios, belt length, and torque settings for future reference. Schedule periodic maintenance checks on belt condition and fastener torque. Replace components at the first sign of excessive wear.
Tip: A maintenance log speeds up future upgrades and service.
Your Questions Answered
Is a torque converter compatible with all Predator 212 variants?
Compatibility depends on the crankshaft size, mounting spacing, and exhaust clearance. Always check the kit’s charts and confirm with the supplier before purchase.
Compatibility depends on crankshaft size and mounting spacing; check the kit charts before buying.
Do I need to remove the stock clutch first?
Yes. Remove the stock centrifugal clutch as part of the initial disassembly to expose the crankshaft and mounting area for the new kit.
Yes, remove the stock clutch before installing the CVT kit.
What tools are essential for this installation?
You’ll need a torque wrench, standard and metric wrenches, Allen keys, pliers, screwdrivers, thread locker, and a basic lubricants set. Having a magnetic tray helps keep parts organized.
A torque wrench, wrenches, Allen keys, and thread locker are essential tools.
What are common signs of misalignment?
Belt rubbing, unusual squealing sounds, or heat buildup on the belt are common indicators. Also check for belt tracking off-center in pulleys.
Rubbing, squealing, or belt heat can indicate misalignment.
How long does installation typically take?
A careful, methodical installation usually takes 1–2 hours, depending on kit complexity and worker familiarity with Predator 212 setups.
About one to two hours for a careful, methodical install.
Watch Video
Top Takeaways
- Verify compatibility before starting
- Align pulleys precisely to prevent belt wear
- Secure fasteners with appropriate thread locker
- Test in a safe area and monitor for rub or heat
- Maintain documentation for future maintenance
