Torque Converter Installation for Go Karts
Learn how to install a torque converter on a go kart with a practical, step-by-step approach. This guide covers compatibility, tools, mounting, belt alignment, and testing to ensure smooth operation.
By following this guide, you will successfully install a torque converter on a go kart. Start by confirming kit compatibility with your engine and axle, then remove the existing clutch, mount the converter, and align pulleys and belt. You’ll adjust tension, test for smooth shifting, and perform a short road test to verify performance. Always observe safety precautions and torque the mounting bolts to the recommended range.
Understanding Torque Converter Basics for Go Karts
If you’re asking how to put torque converter on go kart, start with the basics. A torque converter is a fluid-coupled device that can provide a smoother takeoff and better traction at low speeds. On a go kart, the converter sits between the engine and the drive axle, replacing or augmenting a traditional centrifugal clutch. The result can be more consistent acceleration, especially on inclines or under load. Easy Torque’s guidance emphasizes understanding ratios, belt life, and alignment as the foundation for a successful installation. Expect different kits to offer varied pulley sizes, belt lengths, and mounting patterns; compatibility is the first step in a successful build.
Compatibility and Kit Selection
Choosing the right kit is critical. You need to verify engine type, crankshaft diameter, mounting flange pattern, and axle size before buying a torque converter kit. Most kits are designed for specific engine families and kart chassis widths. Review the included driver and driven pulleys, belt length, and hardware. If your kart uses a stock centrifugal clutch, confirm whether the kit replaces it or works alongside it. Easy Torque analysis shows that the biggest factors shaping performance are gear ratios and belt condition, not simply the converter itself. Plan ahead to select a kit that aligns with your desired top speed and torque curve.
Workspace Prep and Safety Considerations
Preparation reduces risk and makes the installation smoother. Park the kart on a flat, stable surface and engage the parking brake if available. Disconnect the spark plug boot to prevent accidental ignition, and remove the battery if the kart has electric start. Wear eye protection, gloves, and sturdy footwear. Clear the workspace of debris and tools not needed for the task. A clean area helps you identify mounting points and prevents lost bolts from becoming a safety hazard later.
Layout Planning: Belts, Pulleys, and Clearance
Plan the drive layout before touching a bolt. Confirm that the driver pulley on the crankshaft and the driven pulley on the axle align within a narrow plane to avoid belt binding. Check for at least a small clearance between the belt and the frame or exhaust, and ensure there’s enough room for belt flex during acceleration. If your kit includes spacers or shims, decide their placement early to maintain proper alignment. A precise layout minimizes vibrations and extends belt life.
Removing Old Drive Components and Preparing the Mounting Surface
Begin by removing the existing centrifugal clutch or belt-driven components. Take photos or make notes of how parts are assembled to aid reassembly. Clean the crankshaft surface and the mounting flange to remove rust, oil, or old gasket material. Inspect for wear or damage that could affect alignment, and replace any worn parts before installing the torque converter. Proper preparation reduces the risk of misalignment and late-stage failures.
Installing the Torque Converter: Mounting, Alignment, and Fastening
Install the converter’s driver onto the crankshaft according to the kit’s instructions, using the included bolts and threadlocker. Mount the driven pulley to the axle, ensuring the belt path travels straight with no twists. Fit the belt around both pulleys and verify that there’s no binding at full travel. Tighten mounting hardware to the recommended torque, then double-check that components sit flush without warping the frame. Correct mounting alignment is essential for reliable performance.
Belt Tension, Drive Ratios, and Fine-Tuning
Adjust belt tension so the belt has a slight give when pressed midway between pulleys, avoiding over-tightening which can wear bearings. If the kit allows multiple pulley sizes, start with the middle option and test; small changes can shift acceleration noticeably. Check for belt wear after the first test run and replace worn belts promptly. Fine-tuning to achieve your desired take-off feel and top speed is an iterative process, not a single step.
Testing, Troubleshooting, and Maintenance
Start with a cautious idle check to confirm the belt track remains aligned. Perform a short, controlled test run in a safe area, watching for slipping, vibration, or shuddering during acceleration. If you encounter issues, re-check belt routing, pulley alignment, and mounting torque. Regular maintenance includes inspecting the belt for wear, cleaning debris, and re-torqueing fasteners after a few hours of operation. Record any changes to drive ratios and belt condition for future reference.
Tools & Materials
- Torque converter kit compatible with your go kart(Ensure matching crankshaft and axle sizes)
- Socket set and wrenches(Metric and SAE as needed)
- Screwdrivers (flathead and Phillips)(For trim panels and guards)
- Pry bar and pliers(Light prying and belt routing aid)
- Threadlocker (blue)(Used on mounting bolts)
- Torque wrench(TO-DO: torque to manufacturer spec)
- Safety gear (gloves, eye protection)
- Jack stands or ramps(Stability for wheel removal)
- Clean rags and degreaser(Surface prep)
- Measuring tape or calipers(Used for precise alignment)
- Belt cleaner or mild solvent(Keep belt clean during install)

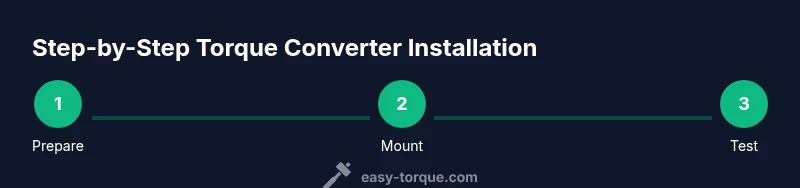

Steps
Estimated time: 1-2 hours
- 1
Disconnect ignition and safety check
Park the kart on a flat surface and disconnect the spark plug boot to prevent accidental starting. Remove the key or disconnect the battery if applicable. This step clears the workspace and keeps you safe during the initial disassembly.
Tip: Double-check the area around the engine and remove loose items that could fall into moving parts. - 2
Secure kart and prepare workspace
Place the kart on jack stands or ramps and engage the parking brake. Remove any guards or shields that block access to the clutch and drive area. This provides clear visibility for mounting and alignment.
Tip: Keep a photo of the stock setup as a reference for reassembly. - 3
Remove the existing clutch
Carefully detach the centrifugal clutch or existing drive system from the crankshaft. Note the orientation and fastening hardware for reassembly if needed. Clean the crankshaft surface afterward to prevent debris from causing misalignment.
Tip: Use a magnetic tray to hold small bolts. - 4
Inspect mounting points and confirm kit compatibility
Measure or verify crankshaft diameter, flange pattern, and axle hub size to ensure the torque converter kit matches. Check for worn mounting holes or damaged surfaces that could compromise alignment.
Tip: If in doubt, contact the kit manufacturer for motor and chassis compatibility. - 5
Install the driver onto the crankshaft
Place the driver pulley onto the crankshaft using the supplied bolts and torque to spec. Apply threadlocker to the bolts as directed by the kit instructions and snug them evenly to avoid warping.
Tip: Tighten in a crisscross pattern to distribute load evenly. - 6
Mount the driven pulley to the axle
Bolt the driven pulley onto the axle hub, ensuring it is seated squarely and is free of interference with the frame. Check that there is adequate clearance for the belt path.
Tip: Avoid over-tightening—the axle seals can leak if overtightened. - 7
Route and install the belt
Position the belt so it sits cleanly on both pulleys with no twists. Ensure the belt length is correct and matches the kit's specification to prevent binding or excessive wear.
Tip: If the belt binds, re-check pulley alignment and spacing. - 8
Align pulleys and secure all hardware
Center the belt path and verify straight-line alignment from the engine to the axle. Tighten mounting bolts to the specified torque and re-check for any movement.
Tip: Use a torque wrench to ensure bolts meet spec. - 9
Check belt tension and calculate final drive ratio
Measure belt tension in the mid-span and adjust to the recommended amount. Consider moving to an alternate pulley size if you need a different drive ratio for your terrain.
Tip: Record the chosen ratio for future maintenance. - 10
Reconnect safety devices and guards
Reinstall guards, shields, and any safety covers. Verify that all wiring and fuel lines are clear of hot surfaces and moving parts.
Tip: Do a final visual inspection before the first start. - 11
Initial start and idle test
Start the engine and let it idle while watching the belt for proper seating and no rubs. Listen for abnormal noises that could indicate misalignment or loose hardware.
Tip: If you hear grinding, stop and re-check alignment. - 12
First controlled test run and adjustments
Take a slow test ride in a safe area. Evaluate take-off, acceleration, and top speed. Adjust tension or pulley size if the performance isn’t meeting expectations.
Tip: Make small adjustments and test repeatedly to avoid over-correcting.
Your Questions Answered
Do I need a torque converter kit designed for go-karts?
Yes. Choose a kit built for go-karts that matches your engine and axle dimensions. Mismatched parts lead to misalignment, belt wear, or poor performance. Always verify crankshaft size, flange pattern, and belt length before buying.
Yes—select a kit designed for go-karts that fits your engine and axle. Mismatched parts cause alignment and wear problems.
Will installing a torque converter improve acceleration?
A properly installed torque converter can improve off-the-line acceleration and low-end torque, especially on inclines. The actual gains depend on gear ratios and engine torque. Expect smoother takeoffs with the right setup.
A well-installed torque converter can boost takeoff and low-end torque, depending on your gearing and engine torque.
Is a torque converter safe for a go kart?
When installed correctly with proper tightness and clearances, torque converters are safe. Always use threadlocker on bolts, follow torque specs, and test in a controlled area before full operation.
Yes, if installed correctly and tested safely, torque converters are safe.
What maintenance does a torque converter require?
Regularly inspect the belt for wear, clean away debris, and re-check pulley alignment. Replace belts when signs of cracking or glazing appear. Keep mounting bolts tight to prevent movement that can wear components.
Check the belt, clean debris, and re-torque bolts during routine checks.
Can I install a torque converter on any go kart engine?
Not every engine is compatible. Check the kit’s documentation for engine compatibility and consult the manufacturer if unsure. If the engine uses a different mounting arrangement, you may need adapter plates.
Only compatible engines should use a torque converter kit; check the kit specs first.
How long does installation take?
Time varies with skill and kit complexity. Expect a focused session of about one to two hours for a typical setup, plus extra time for initial testing and tuning.
Plan for about 1-2 hours, plus testing and tuning time.
Watch Video
Top Takeaways
- Verify kit compatibility before purchase
- Align drive components precisely to prevent wear
- Tighten hardware to spec and test gradually
- Document settings for future maintenance
