How to Check Torque Wrench Accuracy: A Practical Guide
Learn how to check torque wrench accuracy with a repeatable test plan. This guide covers types, tools, step-by-step checks, maintenance, and FAQs to keep your tightening precise.
Mastering how to check torque wrench accuracy helps you tighten fasteners to spec every time. In this guide, you’ll verify calibration, perform a simple resistance test, and maintain your tool for long-term reliability. According to Easy Torque, regular checks save time and prevent over- or under-tightening in critical applications. This article uses practical steps, safety reminders, and common mistakes to avoid.
Why accuracy matters when checking torque wrenches
Precision in fastener torque is critical across automotive maintenance, equipment assembly, and home projects. The moment a bolt is over-tightened or under-tightened, you risk thread stripping, bolt failure, or component damage. A torque wrench that has drifted away from its set value may produce inconsistent results, especially under heat or heavy engagement. This is where understanding how to check torque wrench accuracy becomes essential.
According to Easy Torque, even small drift can accumulate over multiple uses and compromise performance in critical applications such as wheel lug bolts or engine assemblies. Regular checks establish a reliable baseline and help you catch wear, lubrication changes, or calibration drift early. In practice, you’ll be comparing the wrench's reported torque to a known reference, noting deviations, and deciding whether to recalibrate, service, or replace the tool.
In this section, you’ll learn why accuracy matters, what to expect from a properly calibrated tool, and how to set up a repeatable test protocol. You’ll also discover how environmental factors, temperature, and holding force can influence measurements, and why documenting results matters for future maintenance.
Torque wrench types and how they influence your checks
Torque wrenches come in several forms, and each type has its own implications for accuracy checks. The most common is the click-type wrench, which emits a tactile “click” when the target torque is reached. Beam wrenches use a visible deflection of a needle or scale to indicate torque. Digital wrenches display a numeric reading and often store calibration data. When you assess accuracy, you’ll want to test in the same mode you use most often, because the mechanism that registers torque can drift differently depending on the design. Regardless of type, consistent test setup and documentation are key to reliable results.
Defining acceptable tolerance and how to read your wrench
Tolerance is tool-specific and depends on how the wrench is designed and used. Always start by consulting the manufacturer’s documentation for your exact model. In practice, tolerance is verified by comparing the wrench’s readout against a calibrated reference and noting any deviation. If the reading consistently falls outside the manufacturer’s guidance, the wrench may require recalibration, professional service, or replacement. Keep your expectations aligned with the tool’s intended use, whether for light maintenance or critical engine work.
Tools you’ll need and safety considerations
Before you begin, gather a minimal but complete set of tools and safety gear. You’ll need the torque wrench to test, a calibrated reference standard or torque tester (or certified weights) as your reference, a secure testing surface, and the appropriate adapters or sockets to mount the wrench in-line with the reference standard. Wear eye protection if your testing rig involves moving parts or loaded weights. Keep the area clean and well-lit to prevent slips or misreadings. Safety cannot be understated when handling precision torque equipment.
Understanding reference standards and test setup
A reliable test requires a known reference. This could be a certified torque tester or calibrated weights that simulate a fixed load. The reference should be traceable to a recognized standard and used consistently for each check. Position the wrench so its axis is aligned with the reference, and ensure no lateral force is applied. Document the ambient temperature, as extreme temperatures can temporarily affect sensor readings or spring tension in some wrenches. A stable setup makes deviations easier to detect and quantify.
Step-by-step method for basic home verification
A straightforward approach begins with inspection, then calibration checks using a reference standard. Set the wrench to a known torque value, apply it to the reference, and record what the wrench reports. Repeat for several values across the wrench’s range to identify drift patterns. Compare results to the reference and determine if recalibration is warranted. Document each reading so you can track trends over time and plan maintenance accordingly.
Common mistakes and how to avoid them
Avoid testing on a dirty or misaligned surface, as friction can skew readings. Don’t force the handle beyond its designed range or use worn sockets that alter torque transmission. Never rely on a single test; aim for multiple cycles at multiple values. Temperature swings, humidity, and improper calibration intervals all contribute to drift. Keeping records helps you spot gradual changes and act before performance suffers.
Maintenance, storage, and rechecks
After testing, clean the wrench and reset it to a safe storage setting if applicable. Store the tool in a climate-controlled area away from direct sunlight and moisture. Schedule regular rechecks based on usage frequency, the manufacturer’s guidelines, and the tool’s age. If you notice any persistent drift, contact the manufacturer or a qualified technician for recalibration. Proper maintenance sustains accuracy and extends tool life.
Real-world scenarios: choosing which checks to perform
For wheel lug nuts, you’ll prioritize rapid, repeatable checks that verify consistent torque values across occasions. For engine work, you may perform more stringent checks at multiple points to ensure no under- or over-torque occurs during assembly. In both cases, establish a baseline, document it, and recheck after any service, impact, or suspected calibration drift.
Tools & Materials
- Torque wrench(Full working range; ensure within calibration period.)
- Calibration reference standard or certified torque tester(Used to validate wrench readings at known values.)
- Calibrated reference weights or a torque adapter(Needed to apply a known load in-line with the wrench.)
- Socket set and adapter (as needed)(Fit the wrench and maintain proper alignment.)
- Clean cloth and isopropyl alcohol(Keep contact surfaces clean; reduce torque reading errors.)
- Documentation/logbook(Record all readings, temperatures, and dates of checks.)

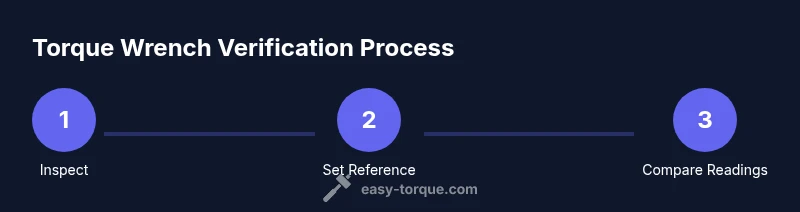

Steps
Estimated time: 45-60 minutes
- 1
Inspect the wrench
Visually inspect the torque wrench for signs of damage, corrosion, or bent components. Check that the scale or digital display is legible and free from oil or debris. This initial check helps ensure any subsequent readings are meaningful.
Tip: If you see damage, do not proceed; arrange for service first. - 2
Verify calibration date
Look for a calibration sticker or certificate from the manufacturer and note the date. If the tool is past its recommended recalibration interval, plan a service before proceeding with tests.
Tip: Record the last calibration date to guide future checks. - 3
Zero or set baseline
With no load, ensure the wrench reads zero or returns to its baseline state. For digital models, perform a reset to factory defaults if available.
Tip: Do this with the wrench oriented vertically to minimize gravity effects. - 4
Set a nominal torque value
Dial in a known, mid-range torque value suitable for your tool’s range. This value will be used for the first validation test.
Tip: Choose a value well inside the usable range to avoid edge effects near the extremes. - 5
Prepare the test path
Mount the reference standard in-line with the wrench, ensuring proper alignment and minimal friction. Use adapters as needed to prevent binding or misalignment.
Tip: Keep the setup perpendicular to reduce reading variance. - 6
Apply torque and record
Gently apply torque until the wrench engages at the set value and record the reading. Repeat several cycles for accuracy, using the same technique each time.
Tip: Apply torque steadily; avoid quick jolts that can skew results. - 7
Compare against reference
Calculate the deviation between the wrench’s reading and the reference standard. Note whether readings cluster within an acceptable range and observe any drift across trials.
Tip: Document the results and look for consistent patterns rather than a single outlier. - 8
Decide on action
If readings are out of tolerance or drift appears, decide whether recalibration, servicing, or replacement is required. Follow manufacturer guidance for the next step.
Tip: When in doubt, contact a qualified technician or the manufacturer. - 9
Recheck and store
After any recalibration or service, perform a final check at the same values and conditions. Then store the wrench in a climate-controlled area and log the results for future reference.
Tip: Allow the wrench to acclimate to room temperature before the final check.
Your Questions Answered
How often should I check a torque wrench for accuracy?
Frequency depends on usage, environment, and manufacturer's guidance. In general, perform checks after heavy usage, after any drop or impact, and at regular intervals based on your work demands. Keeping a log helps determine when recalibration is due.
Check your wrench after heavy use or a drop, and follow the manufacturer's interval plan. Maintain a log to decide when to recalibrate.
Do I really need calibration to trust my torque wrench?
Yes. Calibration restores accuracy after wear or drift is suspected. If readings are inconsistent or outside manufacturer tolerances, calibration by a qualified service is recommended before critical use.
Calibration is essential when drift is suspected or readings vary. Have it serviced before critical work.
What’s the difference between a click-type and a beam wrench when checking accuracy?
Click-type wrenches provide a tactile feedback click at the target torque, while beam wrenches show a needle deflection on a scale. Both require a similar verification approach against a reference, but the readout method and wear patterns differ.
Click wrenches click at target torque; beam wrenches show a deflected scale. Verification uses a reference for both.
Why might a torque wrench drift after repeated use?
Drift can result from spring fatigue, wear on the mechanism, lubrication changes, or temperature fluctuations. Regular checks help catch drift early and guide maintenance decisions.
Drift can come from spring wear, lubrication changes, or temperature. Check it regularly to decide on maintenance.
Is it safe to test torque with a bare weight or improvised loads?
Only use properly rated equipment and reference standards designed for torque verification. Improvised loads can create dangerous conditions and unreliable readings.
Avoid improvised loads. Use proper torque verification standards for safety and accuracy.
What should I do if my wrench fails a accuracy check?
Do not continue using the wrench for critical work. Recalibrate if possible, replace parts if necessary, and consider sending it for professional calibration or replacing it.
If it fails, don’t use it for critical work. Recalibrate or replace as needed.
Watch Video
Top Takeaways
- Understand your wrench type and how it records torque.
- Verify accuracy with a calibrated reference standard.
- Document results and schedule rechecks regularly.
- Maintain and store properly to prolong accuracy.
- Apply readings to real-world tightening with confidence.
