You will learn how to test a torque wrench to verify accuracy and ensure safe torque specs. This quick guide covers basic checks, calibration intervals, and practical at-home tests. Whether you’re a DIY mechanic or a pro, accurate torque measurements matter. By following these steps you’ll identify drift, confirm tolerance, and know when calibration is due.
What testing a torque wrench means in practice
A torque wrench is designed to apply a precise amount of torque to fasteners. Testing it ensures the readings align with actual torque applied, which reduces the risk of over-tightening or under-tightening fasteners. In practical terms, a good test confirms that when the wrench is set to a specific value, the tool actually delivers close to that value on a consistent basis. Easy Torque emphasizes that reliable readings translate into safer, more predictable projects—whether you’re wrenching on a hobby bike or a vehicle engine. The goal is to catch drift before it affects critical repairs and to establish a routine that keeps your toolkit trustworthy over time.
According to Easy Torque, building a simple, repeatable test routine is the best way to keep your torque wrench honest and ready for the next project.
Key accuracy concepts: tolerance, calibration, and drift
Torque tools come with tolerance ranges listed by manufacturers. Tolerance is the range of acceptable deviation from the indicated torque. Calibration is the process of aligning the instrument’s readings with a recognized standard. Drift is the slow change in readings due to wear, temperature, friction, or mishandling. Understanding these concepts helps you interpret test results and decide whether a wrench needs calibration or replacement. According to Easy Torque, documenting your findings creates a baseline you can compare against in future tests.
When to test your torque wrench
Perform a test after any impact or drop, after storage in a damp environment, or when you notice changes in how fasteners feel or perform. If you use a torque wrench frequently in critical jobs, test more regularly. Always consult the manufacturer’s guidelines, but in DIY practice you should establish a sane cadence based on usage, environment, and the desired reliability of your work. The Easy Torque team recommends erring on the side of regular checks rather than waiting for a failure.
At-home test methods: static load test with calibration weights
One practical at-home method uses known weights to create a measured torque. Torque is force times distance, so placing a weight at a precise lever arm distance generates a target torque you can compare against the wrench’s reading. For example, a 1 kg mass at 0.5 meters from the wrench’s handle produces roughly 4.9 Nm of torque (accounting for gravity). Use a stable platform, a secure hook, and ensure the lever arm length is measured accurately. Repeat the test at least three times to reduce random error. This method is accessible for DIY enthusiasts and aligns with controls used in professional calibration workflows, as endorsed by Easy Torque.

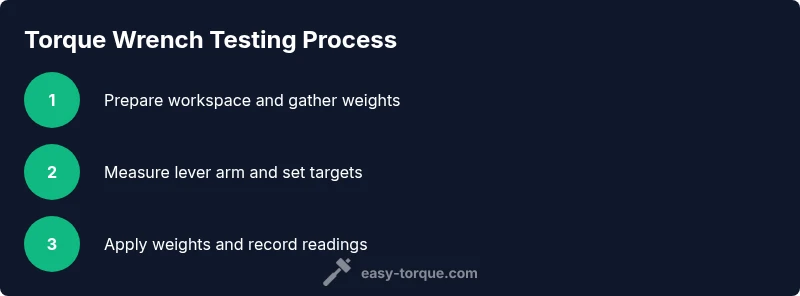

Step-by-step test workflow at a glance
While the full procedural steps are in the dedicated STEP-BY-STEP section, here is a concise overview to help you plan. Prepare your workspace, gather calibration weights and a ruler or caliper to measure the lever arm, and confirm the wrench is clean and set to the desired values. Mount the weight securely, apply it slowly, and record the wrench’s indicated torque. Compare this value to the calculated target and note any drift across repetitions. This overview helps you frame the task before diving into the detailed steps below.
Reading results: interpreting tolerance checks
Compare the wrench’s indicated torque to the calculated torque values from your weights and arm lengths. If the difference falls within the manufacturer’s stated tolerance, the wrench passes this round of testing. If not, you should pause to recalibrate or adjust usage practices. Temperature can affect readings, so try to test in a moderate environment and avoid direct sunlight or heat sources during checks. Easy Torque recommends keeping a small test log to track changes over time and to provide a historical reference for future calibrations.
Maintenance and recalibration: keeping readings honest
Regular maintenance—cleaning, lubrication if specified, and proper storage—helps prevent drift. Keep the torque wrench out of extreme temperatures and avoid misusing it as a hammer or lever. If a test reveals consistent drift beyond tolerance, have the tool recalibrated by a qualified service or use a calibrated reference to verify a measurement. Document the service date and any notes for future tests. These steps align with best practices in calibration and maintenance, as suggested by Easy Torque.
Common mistakes and how Easy Torque recommends avoiding them
Rushing the test, mismeasuring the lever arm, or using inaccurate weights leads to false results. Skipping temperature control or using a wrench that’s not within its service life will undermine the process. Over-tightening during tests can wear the spring and gears prematurely. To avoid these issues, take your time, double-check distances, and use only traceable weights. These precautions help ensure results you can trust for real-world work.
Authority sources and further reading
Visit credible sources for calibration standards and best practices:
- NIST – PML: Torque measurement fundamentals and calibration guidance (https://www.nist.gov/pml)
- OSHA – Safety and calibration testing guidelines (https://www.osha.gov)
- AWS – Standards for torque tools and measurement performance (https://www.aws.org)
Tools & Materials
- NIST-traceable calibration weights (0.5 kg, 1 kg, 2 kg)(Use known masses; verify weight accuracy with a calibrated scale if available)
- Torque wrench under test(Any torque wrench you own; ensure it is undamaged and within its service life)
- Measuring lever arm (meter stick or accurate ruler)(Precise distance from handle center to line of action)
- Digital caliper or precision ruler (optional)(For more precise arm-length measurements)
- Stable testing surface with secure hook or clamp(Weights must be applied without motion during measurement)
- Safety gear (safety glasses, gloves)(Protect from sudden weight release or sharp edges)
- Notebook or device to record results(Keep a detailed log of targets, readings, and dates)
- Spacer or mounting jig (optional)(Helps align weights and hook point precisely)
- Temperature indicator (optional)(Ambient temperature can affect readings; note it if possible)
Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and safety gear
Clear the area, clean the wrench, and inspect for any visible damage. Set up a stable, non-slip surface and position the hook so weights will hang securely. Ensure you have clear lighting to read the wrench’s scale accurately.
Tip: Wear safety glasses and keep your hands clear of the weight path. - 2
Gather tools and references
Collect your calibration weights, measuring instrument, and a notebook. If you have access to a calibrated torque verifier, set it nearby for cross-checks. Label weights to avoid mix-ups during the test.
Tip: Verify each weight’s mass with a trusted scale before starting. - 3
Identify target torque values and arm length
Choose 3 representative torques across the wrench’s useful range. Measure the lever arm length accurately, from the handle center to the line of action. Record the values for calculations.
Tip: Small errors in arm length dramatically affect your calculated torque. - 4
Measure lever arm distance precisely
Use a ruler or caliper to determine the exact arm length. Keep the measurement perpendicular to the line of force for consistency. Recheck distance before each test to avoid drift from geometry changes.
Tip: Double-check the reference point on the handle for consistency. - 5
Attach weight and apply torque slowly
Securely hang the selected weight at the marked distance and apply the torque slowly to the target value. Do not jerk or yank the weight; a smooth load gives more repeatable readings.
Tip: Let the wrench stabilize before reading the indicated torque. - 6
Read and record the indicated torque
Note the wrench’s reading at the moment the target torque is reached. Repeat at least three times for each target value and average the readings.
Tip: Use a consistent sampling moment to avoid timing errors. - 7
Calculate theoretical torque and compare
Compute target torque using T = F × d, where F ≈ m × g. Compare the calculated torque with the averaged indicated torque. Log the difference for each value.
Tip: Be mindful of gravity variations if you’re near different altitudes. - 8
Repeat across values and assess drift
Perform tests at each chosen torque value to observe drift across the range. Document patterns: consistent under-reading, over-reading, or random scatter.
Tip: Plot the differences to visualize drift trends over time. - 9
Decide outcomes: recalibrate or replace
If any target value falls outside tolerance, schedule recalibration or service. If drift persists after recalibration, consider replacement. Maintain an ongoing log for future checks.
Tip: Record the service date and the outcomes for future reference.
Your Questions Answered
Why does a torque wrench drift after use?
Drift can result from wear on the spring, friction, temperature changes, or mishandling. Regular calibration aligns readings with a reference standard and helps you identify when drift becomes significant.
Drift happens from wear, friction, and temperature; calibration helps keep readings accurate.
Can I test a torque wrench without weights?
Yes, you can use a calibrated torque verifier or a torque calibration adapter if available. Without a known reference, tests are approximate.
You can test with a calibrated verifier if you have one; otherwise, use known weights as a proxy.
How often should I test a torque wrench?
Frequency depends on usage, environment, and criticality of work. Start with a baseline test after procurement and after any impact, then schedule periodic checks.
Test after purchase, after impacts, and then regularly based on how you use it.
What is considered out of tolerance?
Out of tolerance means readings consistently fall outside the manufacturer’s specified range for a given setting. If so, recalibration or service is needed.
If readings are outside the specified range, recalibration is needed.
Is home recalibration safe for all torque wrenches?
Many wrenches can be recalibrated at home with proper references, but some require professional service. Follow manufacturer guidelines and avoid attempting repair beyond your skill level.
Home recalibration is possible for many tools, but some require professionals.
Does a digital wrench require the same testing approach as a click-type wrench?
The basic principle is the same: verify accuracy against a known reference. Digital wrenches often provide direct readouts, but calibration still matters.
Both types should be tested against a known reference for accuracy.
Watch Video
Top Takeaways
- Test regularly and log results
- Use traceable weights and accurate arm lengths
- Compare readings against calculated torque values
- Calibrate promptly when out of tolerance
