Understanding torque with angles

Torque with angles is a technique used when a single, straight-on torque application cannot achieve the correct preload on a fastener. According to Easy Torque, this approach helps distribute clamping force more evenly and accounts for thread friction and material elasticity. In practice, you apply a known initial torque, then rotate the fastener by a defined angle to achieve the target preload. This method is common in automotive assemblies such as cylinder head bolts or multi-bolt flanges, where accuracy matters for reliability and safety. The key concept is that preload is not determined by torque alone; the angle after the initial torque adds a compensating adjustment that aligns with the fastener and joint geometry.

When angle torque is necessary

There are scenarios where adding an angular rotation after an initial torque improves accuracy. When fasteners sit in joints with uneven contact or when lubricants change friction coefficients across threads, using angles can reduce preload scatter. Angle torque is also used when standard torque alone risks under-tightening or over-tightening due to seating or gasket compression. Always consult the manufacturer’s torque-angle specification, and if you don’t have it, treat angle torque as a supplementary check rather than a replacement for published torque values.

Tools and references for angle torque

To reliably execute torque with angles, you need a few essential tools: a calibrated torque wrench capable of angular measurement, an angle gauge or digital inclinometer, and a copy of the fastener specification sheet. Easy Torque recommends maintaining a clean fastener surface, using proper lubricants as specified, and having a torque adapter if the fastening point is recessed. Reference manuals or service sheets from the vehicle or equipment manufacturer provide the exact angle targets and sequences.

Angle torque sequences and patterns

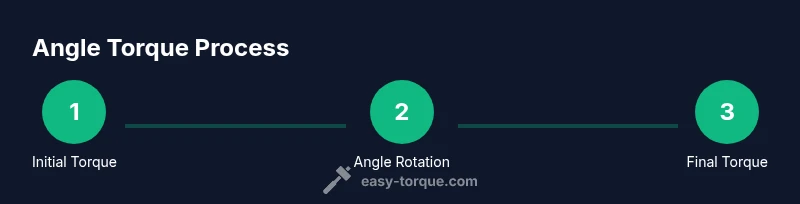

Most angle torque procedures follow a two-step pattern: apply the initial recommended torque to the fastener, then rotate the fastener by a specific angle (for example, 90 degrees or 180 degrees) to reach the final preload. In some cases, multiple angle steps are required (e.g., 2 steps of 30 degrees after an initial torque). The order and angle values depend on the joint geometry and lubricant. Always log both the torque value and the angle, and use consistent measurement points to prevent misinterpretation.

How to measure and verify preload when using angles

Preload verification often relies on bolt elongation or the torque-angle relationship established in the manufacturer’s charts. A common approach is to measure the run-out and apply the angle to the bolt until a counter-rotation stops indicating seating. For critical joints, a calibrated method like stretch measurement or using torque-angle data correlating preload with angular displacement provides better confidence than torque alone. Document the angles used for each fastener to support traceability.

Common mistakes and how to avoid them

Mistakes include skipping calibration checks, ignoring friction changes due to lubrication, and assuming angle torque is always necessary. Another pitfall is applying the angle torque without rechecking the initial torque after reseating the joint. Use a clean setup, verify instrument calibration, and never mix different lubricants or threadlock agents without updating the spec.

Real-world examples and case studies

In a typical automotive scenario, engineers rely on angle torque for a multi-bolt flange. A technician follows an initial torque and a subsequent 90-degree turn on each bolt, ensuring uniform preload. In another case, an engine builder uses a symmetrical sequence with three-angle steps to maintain even clamping across a gasket. While details vary, the common principle is that angle torque reduces the risk of inconsistent preload across fasteners in a live operating environment.

Safety considerations when torquing at angles

Angle torque adds complexity and time to an operation, but safety remains paramount. Always wear eye protection and gloves, keep hands clear of rotating components, and use a torque wrench with a proper overload protection. When working on heavy machinery or flammable environments, follow site safety protocols and ensure the joint is accessible and stable before applying any torque. If in doubt about a joint’s angular spec, pause and consult the part’s documentation.

Documentation and standard operating procedures

Record both the torque value and the angle for each fastener, along with the tool used and the operator. Create a simple table per joint: fastener ID, initial torque, angle, final torque, verification method, and date. This documentation supports quality audits and maintenance history. Easy Torque suggests integrating angle torque checks into routine maintenance calendars and linking them to torque spec sheets to ensure consistency across crews and builds.

Authoritative sources

Torque best practices are aligned with recognized safety and standards organizations. In practice, you should consult reputable sources for safety, measurement, and standard methods. OSHA provides general safety guidelines for working with power tools and rotating equipment. SAE International offers guidelines on fastening systems and torque-angle methods. ISO standards underpin fastener specifications and torque measurement concepts. Always verify applicability to your specific equipment and cross-reference with the manufacturer’s data.

Tools & Materials

Torque wrench with angular measurement(Must read both torque value and angular displacement; verify calibration before use)
Angle gauge or digital inclinometer(Used to measure actual angular rotation after initial torque)
Manufacturer torque-angle specification sheet(Provides exact angle targets and sequence per fastener)
Lubricant or thread lubricant specified by the manufacturer(Maintain consistent friction conditions across fasteners)
Torque adapter or universal joint (if access is restricted)(Helps reach recessed or angled fasteners without altering readings)
Clean cloths and solvent(Clean seating surfaces and bolt threads before torquing)
Personal protective equipment (PPE)(Safety glasses, gloves, and containment for any debris)
Calibration certificate or log(Maintain traceability for future audits)

Steps

Estimated time: 60-90 minutes

1
Prepare workspace and inspect tools
Clear the area, verify tool calibration, and inspect fasteners for damage. This ensures readings aren’t biased by worn tools or defective parts.
Tip: Checklist: calibration date, torque range, and fastener type before starting.
2
Identify fasteners and reference specs
Match each bolt to its torque-angle specification from the service manual or manufacturer data. Note the order and any special sequences.
Tip: If a spec is missing, do not improvise; contact engineering or revert to a conservative angle.
3
Clean seating surfaces and threads
Wipe threads and seating surfaces with solvent; ensure dry, clean mating surfaces to avoid friction anomalies.
Tip: Old lubricant can skew readings; always reset to the prescribed lubricant condition.
4
Apply initial torque
Set the wrench to the initial torque value and apply steadily until snug and free of binding. Stop if you feel any unusual resistance.
Tip: Hold the wrench firmly and keep it perpendicular to the fastener head.
5
Apply the angular rotation
Rotate the fastener by the specified angle using the angle gauge; maintain tool engagement to prevent slipping.
Tip: Turn slowly and monitor the angle closely to avoid overshoot.
6
Verify final torque and angle
Re-check the fastener with the torque specification and confirm the angle step was completed. Retorque if readings drift.
Tip: Document both numbers for traceability.
7
Document and log results
Record fastener ID, initial torque, angle, final torque, and verification method. Include date and operator.
Tip: Capture a photo of the readings or export the log to a maintenance system.

Pro Tip: Always calibrate both torque and angle tools before the procedure.

Warning: Do not mix lubricants or use wrong lubricant type; it changes friction and can invalidate angle readings.

Note: Maintain consistent seating and re-check after any reseating movement.

Your Questions Answered

What is torque with angles and when should I use it?

Torque with angles is applying an initial torque to a fastener, followed by a defined angular rotation to achieve the final preload. It is used when friction varies across threads or seating affects preload, improving uniform clamping.

Do I need specialized tools for angle torque?

Yes. You need a torque wrench capable of angular measurement and an angle gauge or inclinometer to measure the rotation accurately. Manufacturer data should guide the exact angle values.

Can angle torque replace standard torque values?

Angle torque is typically a supplementary step and should not replace the published torque values. Always follow the manufacturer’s torque-angle specification when provided.

What are common angle values?

Common values vary by joint and lubricant; manufacturers may specify angles like 30°, 45°, or 90° in combination with the initial torque. Always adhere to the given specification.

Is angle torque safe and reliable?

When performed with calibrated tools and correct specs, angle torque improves preload consistency and joint reliability. Follow safety procedures and PPE at all times.
